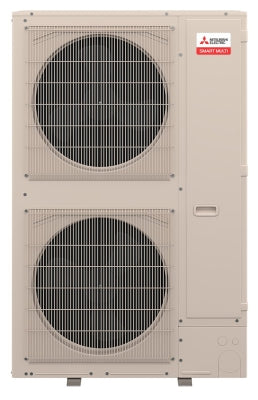

MXZ-SM120TAM
Regular price$0.00
/
MITSUBISHI SMART MULTI Three-phase, Heat Pump, outdoor unit
| Feature | Specification |
|---|---|
| System Type | Multi-Zone Outdoor Unit |
| Heating & Cooling | Heat Pump (Heating & Cooling) |
| Cooling Capacity | 60,000 BTU |
| Heating Capacity | 72,000 BTU |
| SEER Rating | Up to 18 SEER |
| HSPF Rating | Up to 10.5 HSPF |
| Power Supply | 208 / 230V, 1 Phase, 60Hz |
| Operating Temperature Range | Cooling: -10°C to 46°C (14°F to 115°F) Heating: -15°C to 24°C (5°F to 75°F) |
| Refrigerant | R-410A |
| Max Line Length (each) | 82 feet per indoor unit |
| Max Elevation Difference | 49 feet (between indoor and outdoor units) |
| Sound Level | Approx. 58 dB(A) |
| Weight | Approx. 194 lbs (88 kg) |
| Dimensions | 30.25" H x 35.5" W x 12.75" D |
| Defrost Mode | Auto Defrost |
| Low Ambient Cooling | Yes, down to 14°F |
| Energy Star Certification | Yes |
The MXZ-SM120TAM is capable of supporting multiple indoor units, making it suitable for larger spaces that require efficient heating and cooling solutions.
SUBMITTALS:
To Download Submittals Click Here
